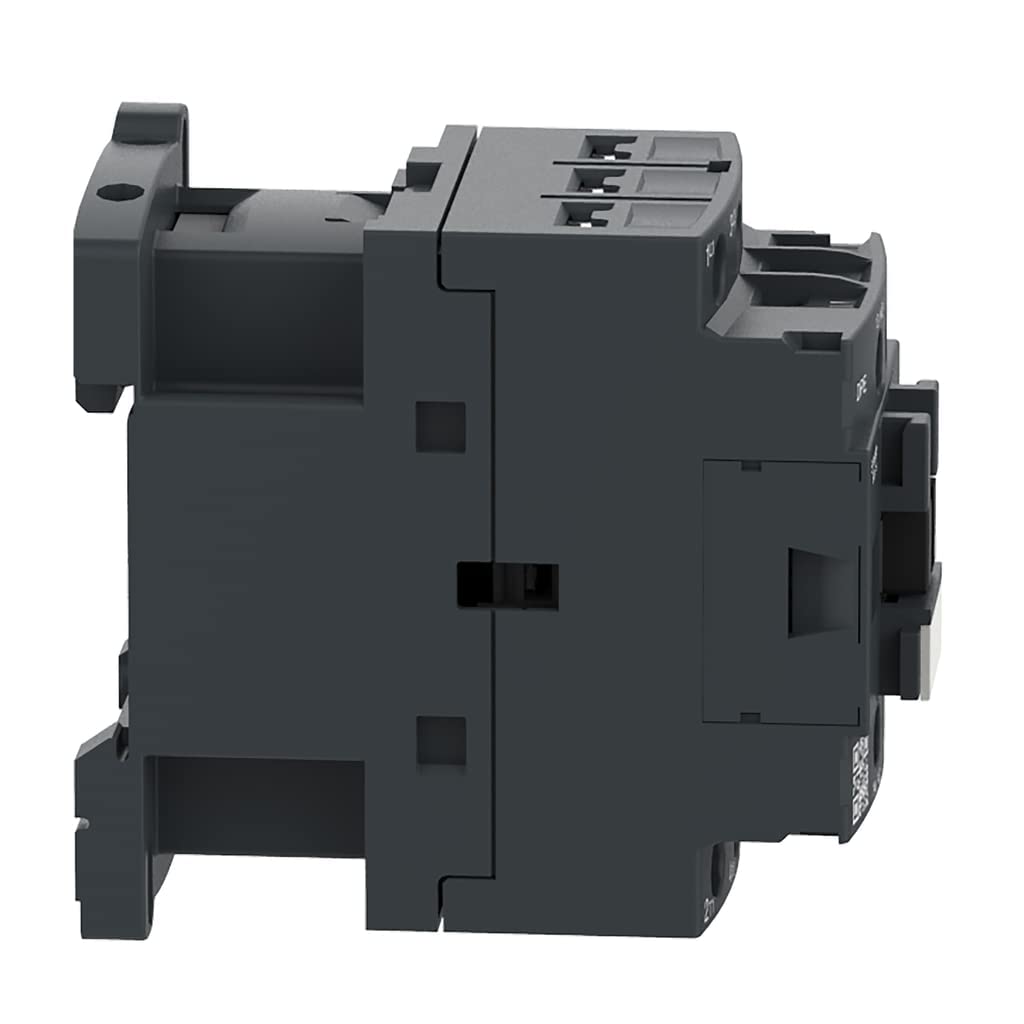

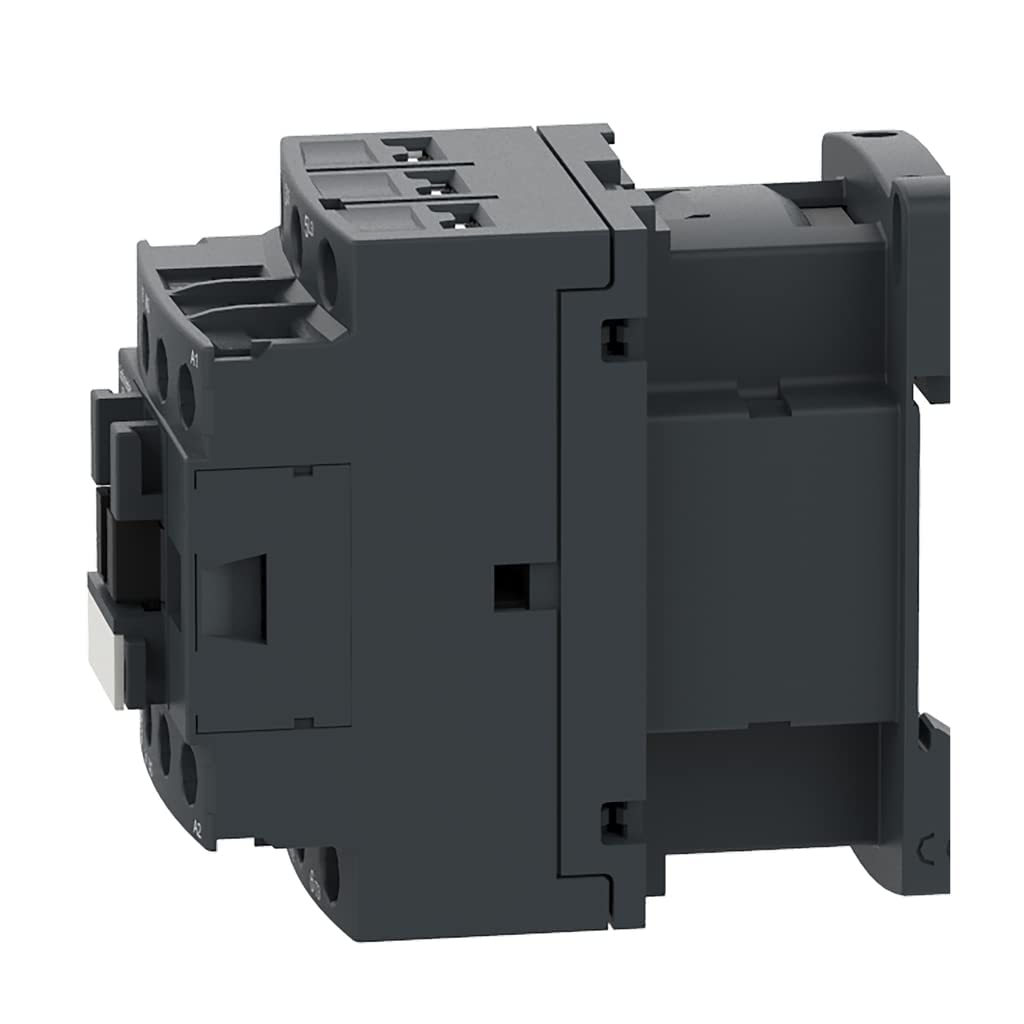

Schneider Electric DPE09B7 Easy TeSys IEC Contactor, 3HP, 480V, 24VAC Coil, HVAC & AC Contactor, Pumps, Compressors, DIN-Rail Mount/Screw Fixing, 1/3HP 115V-1Ph, 1HP 230V-1P, 2HP 200-230V, 3HP 460V
| Quantity | Price | Discount |
|---|---|---|
| 20-30 | $27.86 | 7% |
| 31-40 | $27.26 | 9% |
| 41-50 | $26.07 | 13% |
| 51+ | $24.57 | 18% |
$29.96 /each
11
People watching this product now!
Description
Brand: Schneider Electric
Color: Multicolor
Features:
- DPE contactors offer quick simple setup; stable and durable with compact design to protect the contactor from dust and other environmental elements
- Great switch solution for HVAC, elevators, food processing, pumps or compressors, conveyors, hoists and cranes, and agriculture
- High quality, adaptable, and reliable operation even in extreme environments
- Compatible with Schneider Electric DPEAN11 contact block, LAD9R1 reversing kit, and GV2AF3 mounting interconnection block
- Flexibility to add motor disconnects to help met NEC requirements; must have Schneider Electric overload relay DPER10 and/or manual motor starter GP2E10 for operation, depending on your application
Package Dimensions: 56x117x280
Details: Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (3 HP@480V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
