Schneider Electric DPER03 Easy TeSys Thermal Overload Relay with Manual/Automatic Reset, Screw Clamp Terminals | Used with Air Conditioner, Heat Pump, HVAC, AC Compressor and More, 0.25-0.4Amps
| Quantity | Price | Discount |
|---|---|---|
| 20-30 | $31.20 | 7% |
| 31-40 | $30.53 | 9% |
| 41-50 | $29.19 | 13% |
| 51+ | $27.51 | 18% |
$33.55 /each
Description
Brand: Schneider Electric
Color: Multicolor
Features:
- This thermal overload relay can be used in a network frequency of 0-4000hz, the rated insulation is 600V cUL / 690V IEC, and tripping class 10, for protection of 3-phase motors for HVAC, elevators, pumps or compressors, and agriculture
- It features a compact and modular design, making it an ideal solution for space-constrained applications and can be quickly and easily configured to meet the needs of your specific application
- A reliable and cost-effective solution for protecting your motor against overloads, phase failures, and phase unbalances; durable, compact design to protect from dust and other environmental elements
- The thermal overload relay has phase-break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button
- Compatible with these Schneider Electric contactors DPE09G7, DPE09BL, DPE09U7, DPE09B7 and Schneider Electric’s Easy TeSys GP2E manual motor starter series; use with LAD7B106 Schneider Electric mounting adaptor
Package Dimensions: 49x91x137

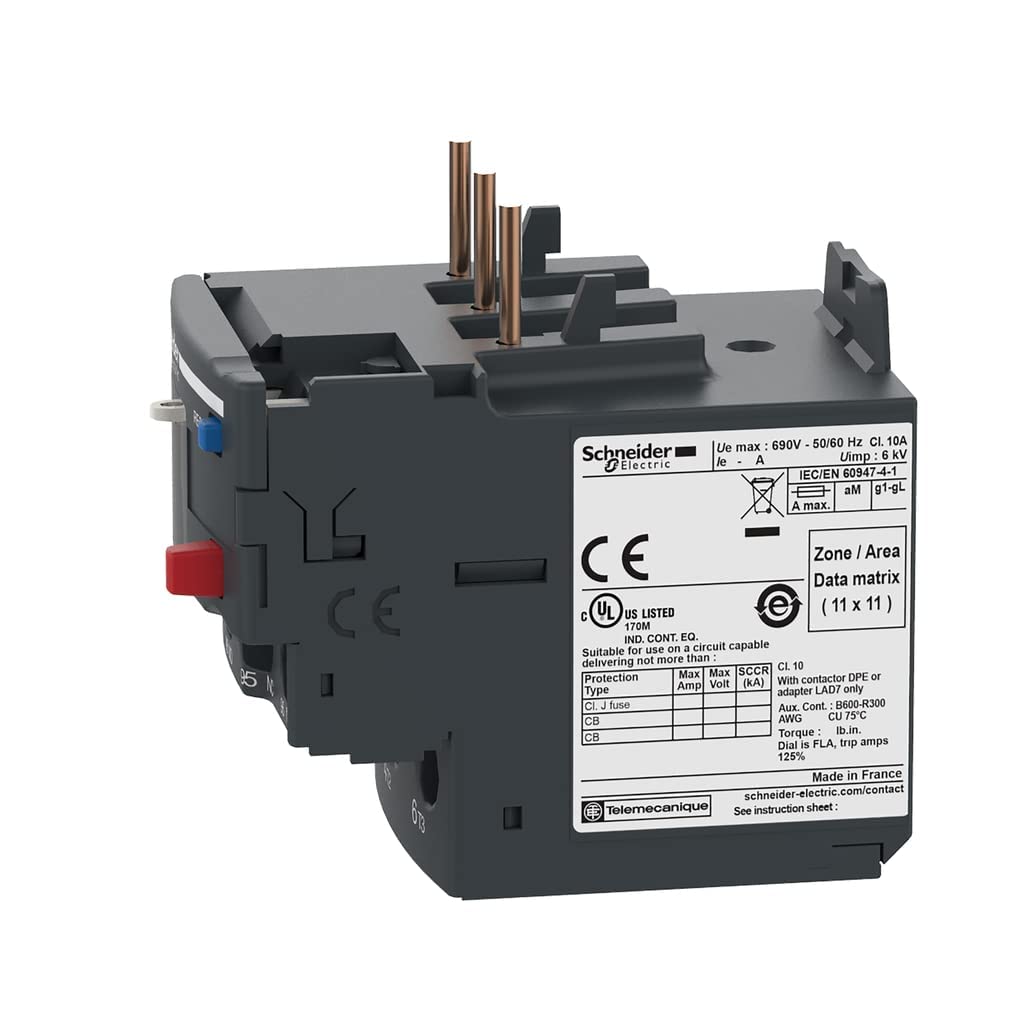

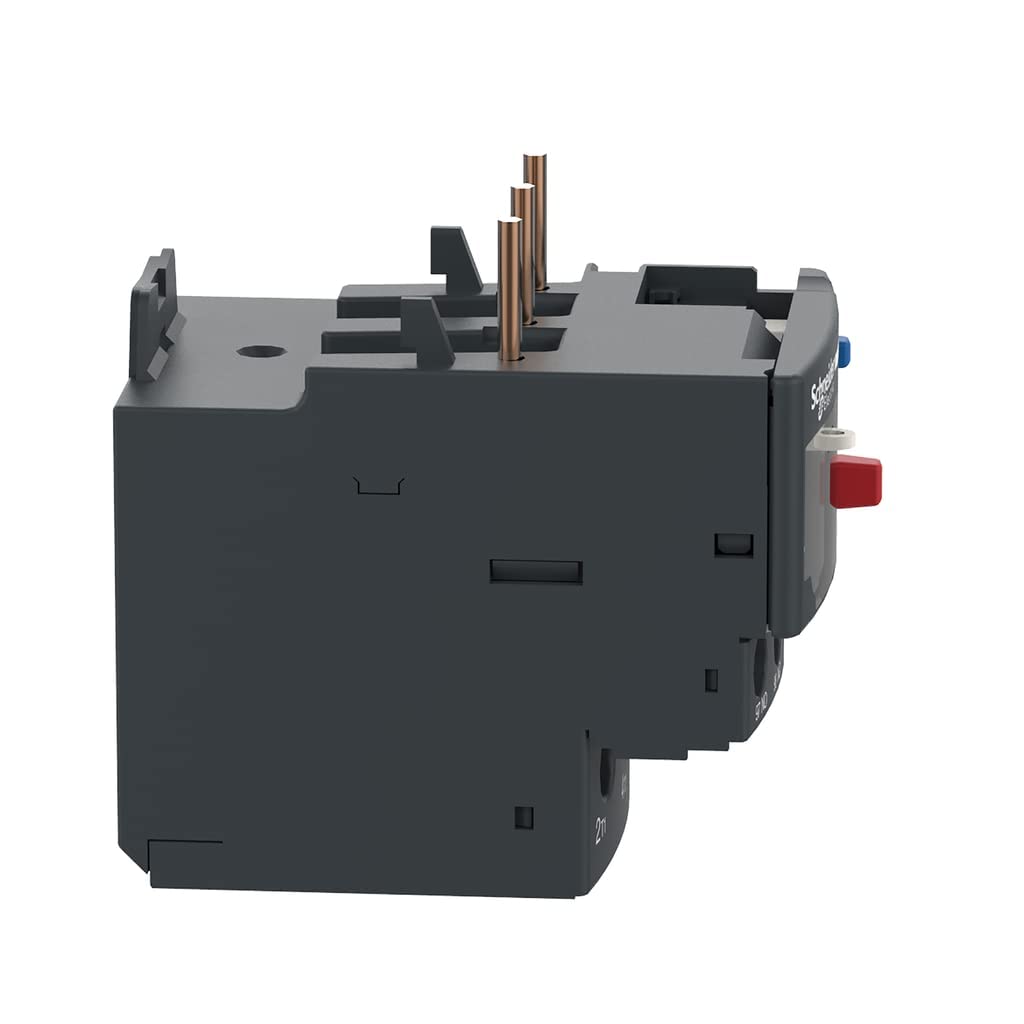

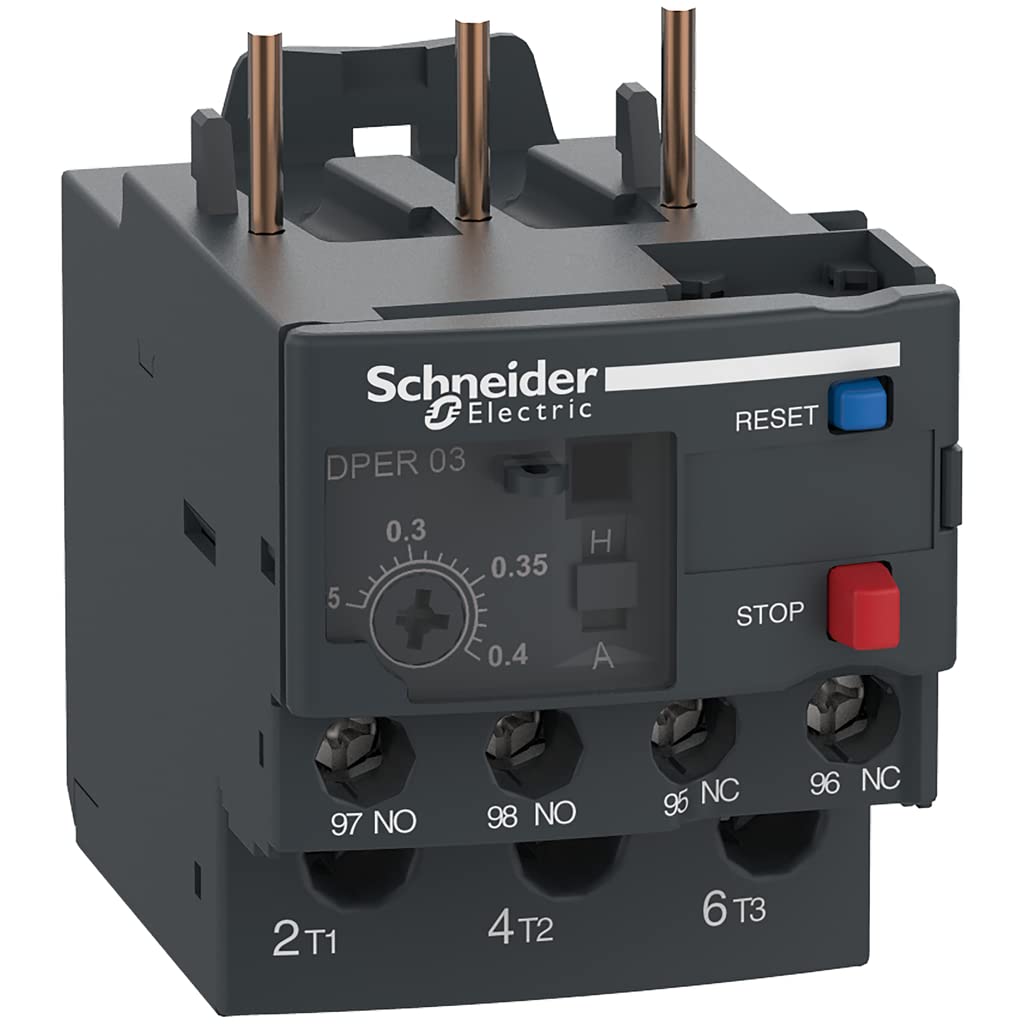

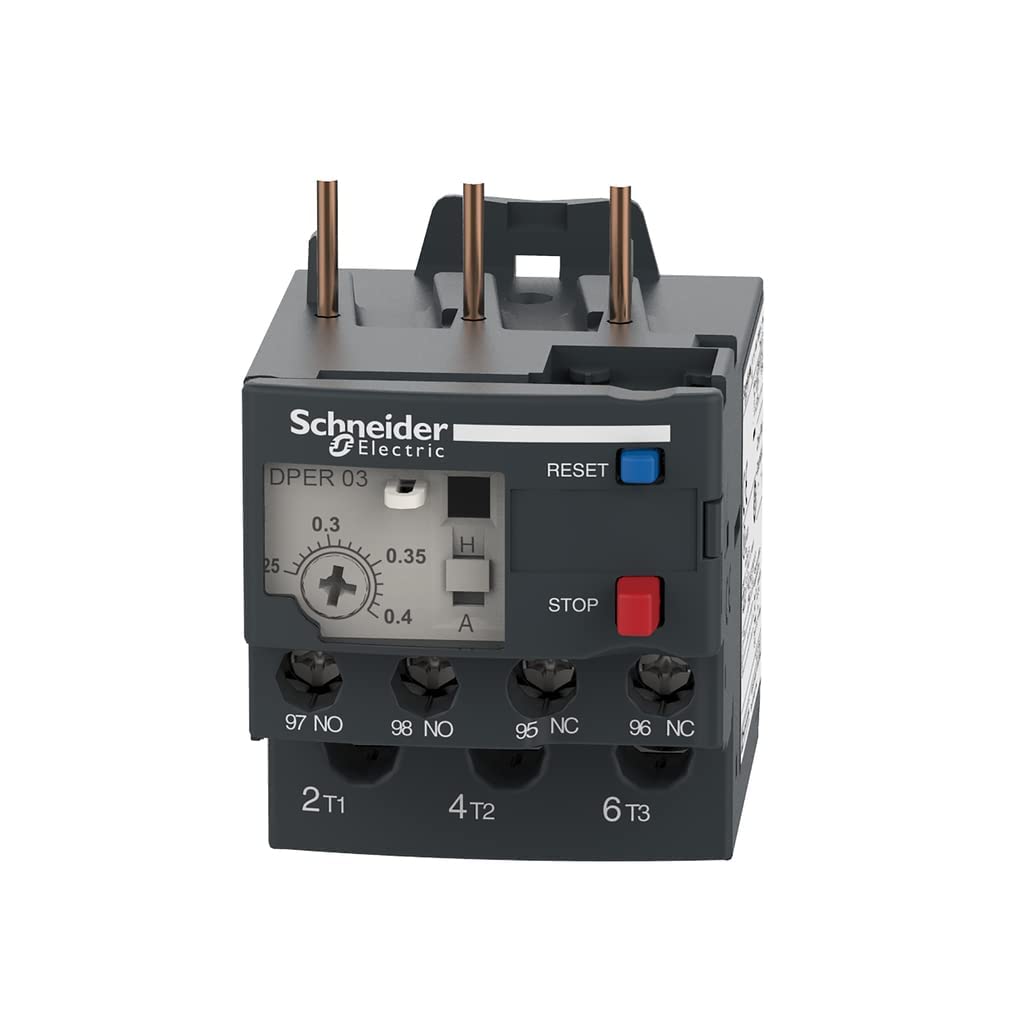

Details: Easy TeSys DPER thermal overload relay, 0.4A/690V, thermal setting range 0.25-0.4A, tripping class 10, for protection of 3-phase motors 0.09kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, the DPER series of thermal overloads connects directly to the bottom terminals of the 3-pole DPE contactors series ranging from 9-38Amps. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (IEC, cUL), Green Premium compliant (RoHs/Reach).
